產品簡介JZ600-D5系列車輛底盤安全檢查監控拍照系統(又名:車底監控、地埋攝像機、車底安檢、車底探測器、車底檢查、車底反藏匿)是一套集自動對車輛底盤進行圖像采集、顯示、控制、錄像、抓拍為一體的車輛安檢管理系統。該系統能有效防止車底藏匿炸彈、武器、生化危險品、危險人物出入重要場所;
產品簡介

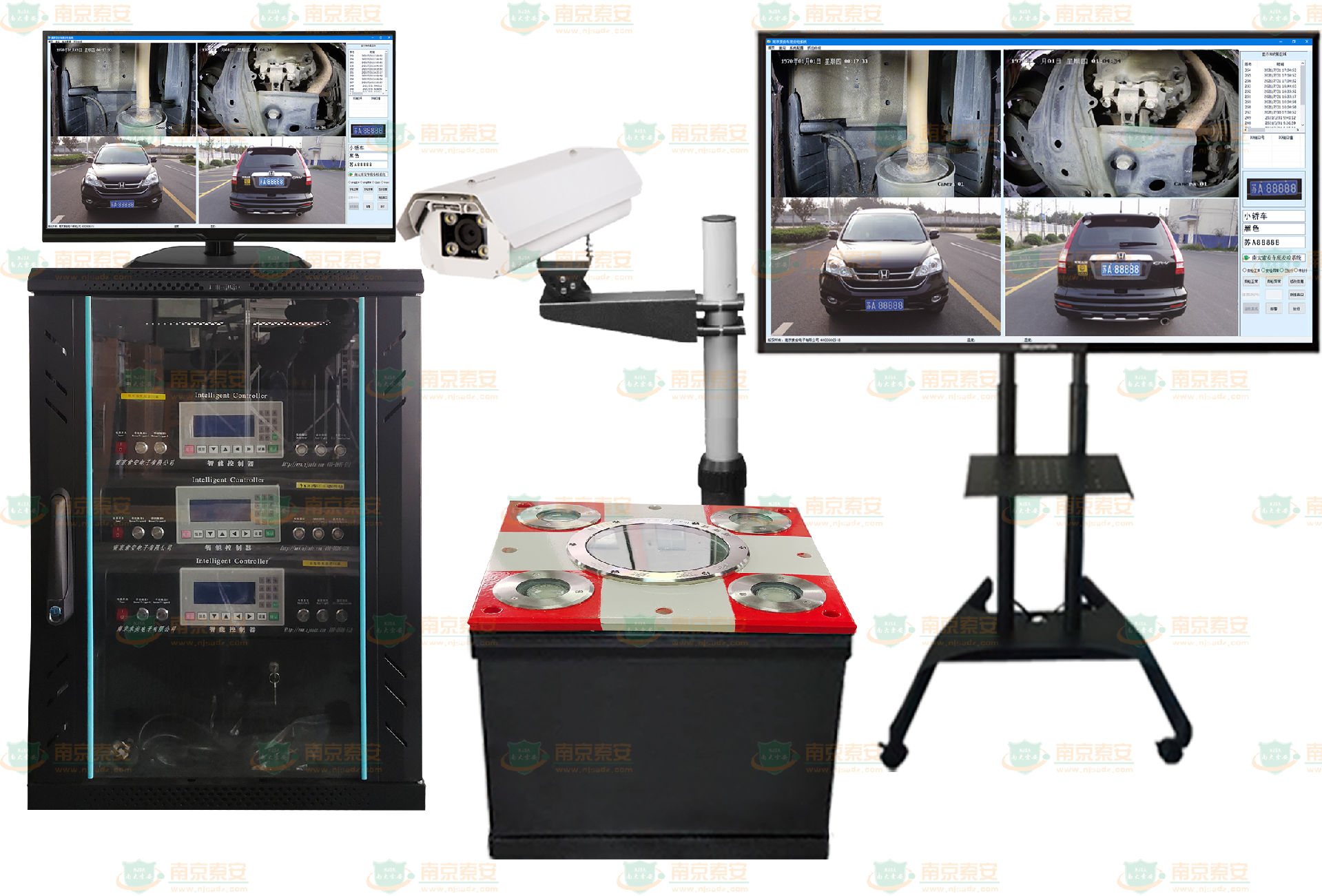

經典重承載固定地埋款車底監控拍照系統(又名:車底監控、地埋攝像機、車底安檢、車底探測器、車底檢查、車底反藏匿)是一套集自動對車輛底盤進行圖像采集、顯示、控制、錄像、抓拍為一體的車輛安檢管理系統。該系統能有效防止車底藏匿炸彈、武器、生化危險品、危險人物出入重要場所;防止車底攜帶毒品、非法走私物乃至非法移民通過檢查站,該產品具有成像清晰度高、系統運行穩定可靠、安裝簡單快捷等特點。適用于彈藥庫、軍事基地、軍工電子研究所等軍事保護目標,監獄、看守所、法院等政法單位,大型展覽館、博物館,及銀行金庫等金融等領域的主通道或出入口,用以監視檢查車輛底部和其它目標,防脫逃防防潛入。
Product Description
Classic heavy load fixed buried models of vehicle chassis monitoring photo system (also known as: vehicle chassis monitoring, buried cameras, vehicle chassis security check, vehicle chassis detector, vehicle chassis inspection, vehicle chassis anti-hiding) is a set of automatic vehicle chassis image acquisition, display, control, video, capture as one of the vehicle security management system. The system can effectively prevent the vehicle chassis to hide bombs, weapons, biochemical hazards, dangerous people in and out of important places; to prevent the vehicle chassis to carry drugs, illegal smuggling and even illegal immigrants through the checkpoints, the product has a high degree of clarity of imaging, stable and reliable operation of the system, simple and fast installation and so on.

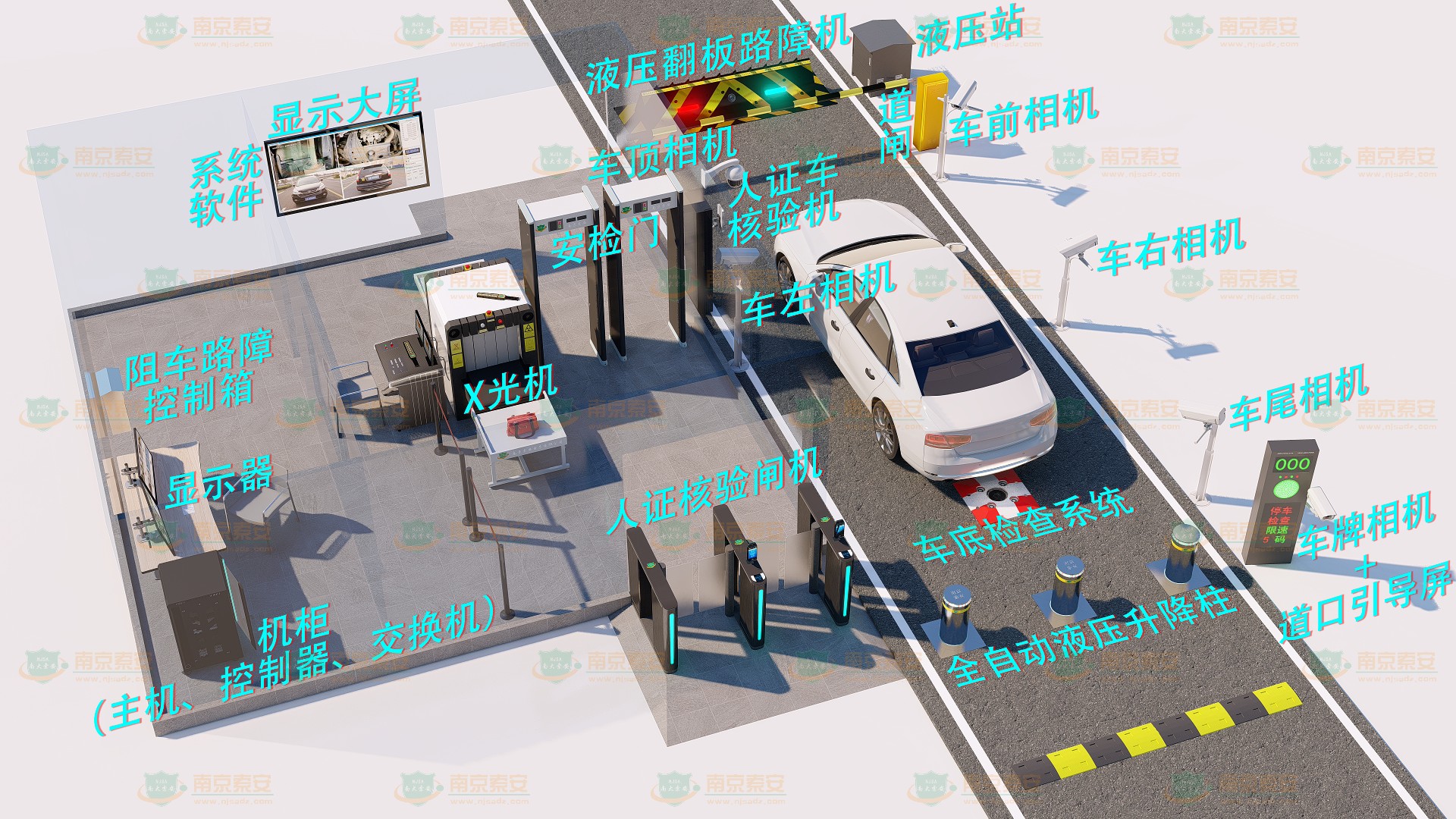

應用場景:
1、國家大型會議、運動會、展會等活動的車輛出入口的臨時安全防范、反恐檢查;
2、監獄、看守所、戒毒所等的臨時出入口防逃檢查;
3、機場、政府、銀行庫區、保稅區、大使館、港口碼頭、車站、軍隊、公安等重點場所的出入口、停車場的反恐防夾帶檢查;
4、海關、邊檢口岸的檢查卡口的臨時防走私、反偷渡檢查;
5、交通安全檢查站、車輛檢測中心、4S店維修車間、新能源換電站等的車輛性能檢測。
Application Scenario:
1. Temporary security prevention and anti-terrorism checks at the entrances and exits of vehicles for large national conferences, games, exhibitions and other events;
2, The temporary entrance and exit of prisons, detention centers, drug rehabilitation centers, etc. to prevent the escape check;
3, Anti-terrorism anti-entrapment inspection of entrances and exits, parking lots of key places such as airports, governments, bank depots, bonded areas, embassies, port terminals, stations, military and public security;
4, Customs, border control ports of the checkpoint temporary anti-smuggling, anti-smuggling checks;
5, Vehicle performance inspection at traffic security checkpoints, vehicle testing centers, 4S store maintenance workshops, new energy exchange stations, etc.
產品參數
所有內部部件都已經過防腐、防滲透、熱鍍鋅、靜電噴涂等處理
鏡頭:水平視場角180°,垂直視場角100°
補光:4或2個LED補光燈,采用智能自動感應式補光
通用功能:防閃爍,鏡像,密碼保護,視頻遮蓋,水印技術,IP地址過濾
圖像:分辨率不低于2560 × 1440@25fps,在該分辨率下可輸出實時圖像碼流平滑設置,適應不同場景下對圖像質量,流暢性的不同要求
安全服務:支持三級用戶權限管理,支持授權的用戶和密碼,支持IP地址過濾
支持HTTPS等安全認證,支持創建證的書;初始設備開機修改密碼,保障密碼安全
支持用戶登錄鎖定機制。
面板采用20MM以上厚度的軍用優質高強度抗壓耐磨防腐金屬鋼板,保護裝備,可承受56噸以上大車碾壓。
監控視窗采用防積水臺階式納米技術的高透明高強度抗壓耐磨可電加熱除霧的全景視窗。
高強度結構,全密封體模塊化設計,用于各種條件惡劣或危險工作的地方;
內置超寬視角無畸變級高清數字攝像機 自動光圈/自動背光補償;
軍用級堅固金屬部件,分體單元設計,全密封結構,防水、防腐蝕、防震、防壓、防冷凝;
可通過地感、無線雷達、激光探測、智能檢測可智能檢測車輛來去并自動啟用關閉輔助大功率面光源照明;
內置溫度、濕度探測器,可自動控制加熱、除濕等,在室外路面不再擔心冷凝現象;
雙向抗碾壓保護設計,各個單體封閉模塊可在受到輪胎外力后進行自動升降;
獨創的安裝使用方式,適用于彈藥庫、軍事基地、軍工電子研究所等軍事保護目標,監獄、看守所、法院、檢察院、公安等政法單位,大型展覽館、博物館,及銀行金庫等金融等領域的主通道或出入口,用以監視檢查車輛底部和其它目標,防脫逃、防滲透潛入等反恐安檢;
室內/室外全天候使用:防水、防腐蝕、防震、防壓、防冷凝抗高低溫
輔助照明控制:手動、自動(雷達、激光)
Product Parameters
All internal parts have been treated with anti-corrosion, anti-penetration, hot-dip galvanization, electrostatic spraying and so on.
Lens: Horizontal field of view 180 °, vertical field of view 100 °
Fill light: 4 or 2 LED fill light, using intelligent auto-sensing fill light
General features: anti-flicker, mirroring, password protection, video masking, watermarking technology, IP address filtering
Image: resolution of not less than 2560 × 1440 @ 25fps, in the resolution of the output real-time image stream smoothing settings, to adapt to different scenarios on the image quality, smoothness of different requirements
Security services: support for three-level user rights management, support for authorized users and passwords, support for IP address filtering.
Support HTTPS and other security authentication, support for the creation of the certificate of the book; initial equipment to change the password on boot, to protect the password security.
Support user login locking mechanism.
Panel using more than 20MM thickness of the military high-quality high-strength pressure-resistant wear-resistant corrosion-resistant metal steel plate to protect the equipment, can withstand more than 56 tons of large vehicles crushed.
The monitoring window adopts waterproof step-type nanotechnology with high transparency, high strength, anti-pressure, wear-resistant, electrically heated and defogged panoramic window.
High-strength structure, fully sealed body modular design, for a variety of harsh conditions or dangerous work place;
Built-in ultra-wide viewing angle distortion-free grade HD digital camera Auto iris/auto backlight compensation;
Military grade rugged metal parts, split unit design, fully sealed structure, waterproof, corrosion-proof, shockproof, pressure-proof, condensation-proof;
Can be detected by ground sensing, wireless radar, laser detection, intelligent detection can be intelligent detection of vehicles coming and going and automatically enable the closure of the auxiliary high-power surface light source lighting;
Built-in temperature, humidity detector, automatic control of heating, dehumidification, etc., no longer worry about condensation phenomenon in the outdoor road surface;
Two-way anti-roller protection design, each single closed module can be automatically raised and lowered after being subjected to external tire force;
Innovative installation and use, suitable for ammunition depots, military bases, military electronics research institutes and other military protection targets, prisons, detention centers, courts, procuratorates, public security and other political and legal units, large exhibition halls, museums, and bank vaults and other financial and other areas of the main corridor or entrance and exit to monitor and inspect the bottom of the vehicle and other targets, anti-defection, prevent infiltration of anti-terrorism security checks;
Indoor/outdoor all-weather use: waterproof, corrosion-resistant, shockproof, anti-pressure, anti-condensation and anti-high and low temperature.
Auxiliary lighting control: manual, automatic (radar, laser)
-
